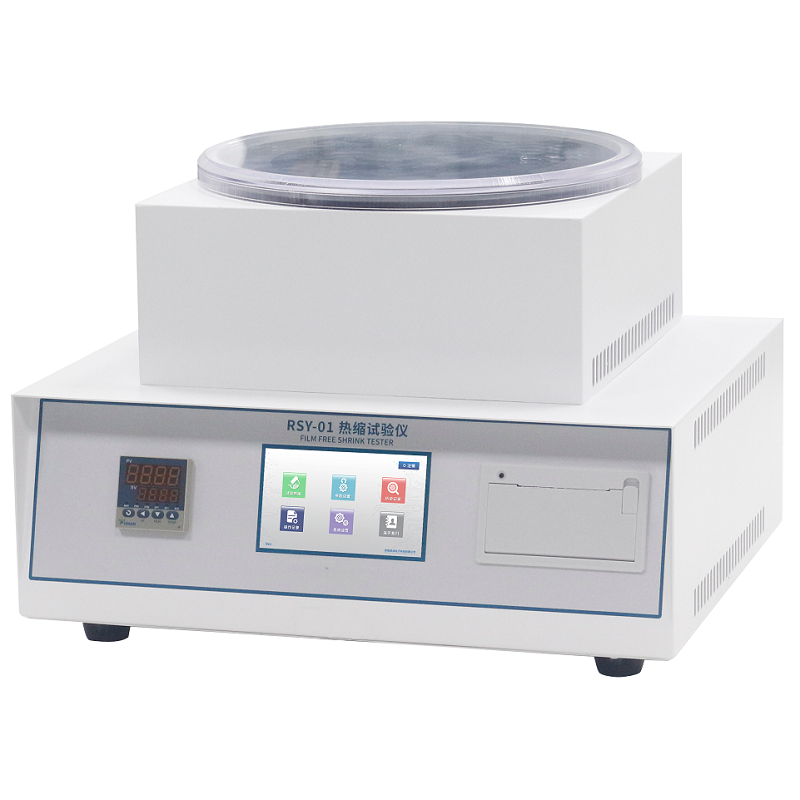

DH-RSY-01 Film Free Shrink Tester Lab Thermal Shrinkage Testing Equipment,Plastic Packaging Film Heat Shrink Performance Test
Introduction:
RSY- 01 Film Free Shrink Tester is professionally applicable to the determination of heat shrinking performance and dimensional stability of various films, heat shrinkable tubes, hard PVC films for tablets, and back-sheets in the fluid medium at different temperatures.
Technical Features:
Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation.
The instrument is heated through fluid medium, which could provide the stable test environment.
Automatic timer function to efficiently guarantee the accuracy of test data.
The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface.
Standard clamp wire mesh support could make the test done smoothly.
Test Standards:
This instrument conforms to the following standards: GB/T 13519, ASTM D2732.
Application:
| Basic Application |
Film |
It is suitable for testing the thermal shrinkage performance of various films in liquid media at various temperatures, such as PE thermal shrinkage film for the integrated package of alcoholic drinks, soda cans, mineral water and various beverages, as well as PVC, POF, OPS and PET shrinkage film suitable for various kinds of packaging. |
Technical Data Sheet:
|
Model
|
DH-RSY-01 Film Free Shrink Tester |
| Sample size |
≤140 mm×140 mm |
| Temperature control range |
Room temperature ~ 200 ℃ |
| Temperature control accuracy |
±0.3℃ |
| Power |
AC 220V 50Hz |
| Size |
440 mm (L) × 370 mm (W) × 310 mm(H) |
| Weight |
24kg |
Configuration:
| Standard configuration |
Instrument, 1 sets of clamping nets |
