Name: HT-TM-005 Table Mixer, High Precision Rubber Plastic Mixing Machine for Laboratory Use
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: HT-TM-005
Availability: InStock

Inicio Productos Pruebador de metales preciosos

HT-TM-005 Table Mixer, High Precision Rubber Plastic Mixing Machine for Laboratory Use

Datos del producto:

Lugar de origen:	Dongguan, Provincia de Cantón
Nombre de la marca:	HONTOTEST
Certificación:	CE,FCC,ISO
Número de modelo:	HT-TM-005

Pago y Envío Términos:

Cantidad de orden mínima:	un juego
Precio:	negotiable
Detalles de empaquetado:	caja de madera
Tiempo de entrega:	3-5 días laborables
Condiciones de pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente:	300 juegos por mes

Contactar ahora

Descripción detallada del producto

Capacidad de la cámara de mezcla:	0.05L	Rango de temperatura:	RT-300 ℃
Método de calentamiento:	Calefacción eléctrica	Controlador:	Control de pantalla táctil PLC
Relación de velocidad del rotor:	1:1.27	Método de alimentación:	Manual
Motor principal:	2,2 KW

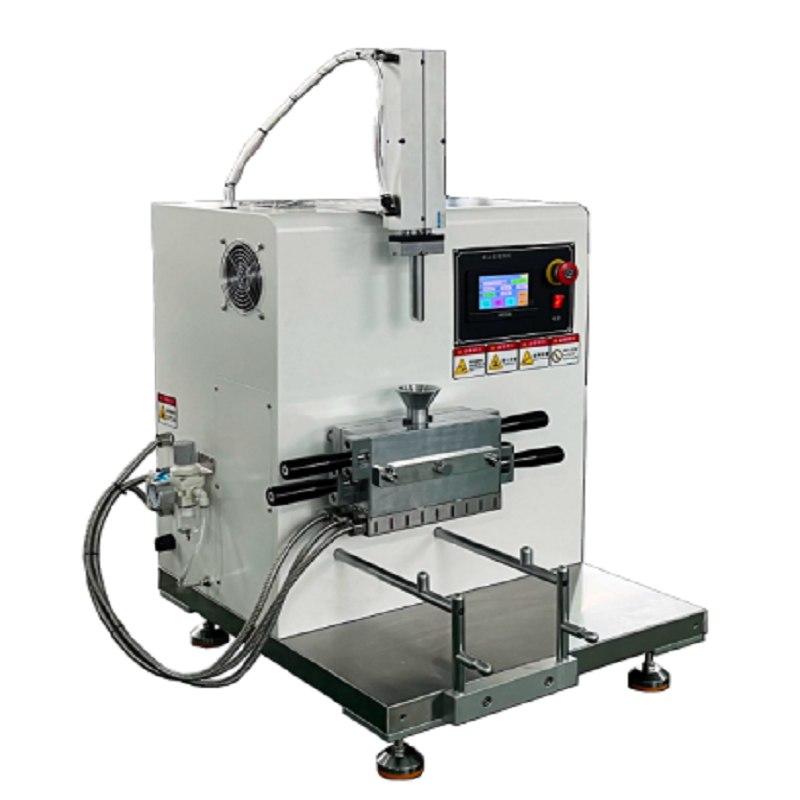

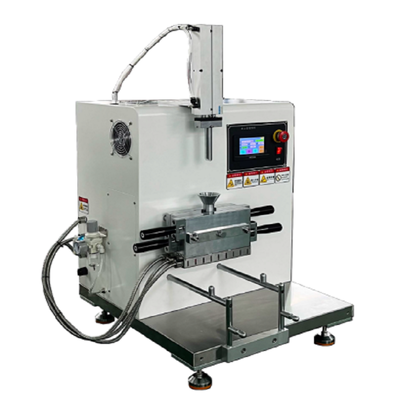

HT-TM-005 Table Mixer, High Precision Rubber Plastic Mixing Machine for Laboratory Use

Introduction:

The main function of the desktop manual open and close internal mixer is to make the product meet the quality and color required by the customer. In order to meet the customer's requirements, the experimental results and their ratios are used in the production line. This machine is also the equipment for mixing the experimental raw materials and compounding agents evenly. It can be electrically heated and air cooled.

Parameters:

Model	HT-TM-05
Mixing chamber capacity	0.05L
Temperature range	RT-300℃
Heating method	Electric heating
Controller	PLC touch screen control
Rotor speed ratio	1:1.27
Rotor speed	Single frequency conversion speed regulation, 3-45 rpm adjustable
Feeding method	Manual
Rotor material	SKD Chrome-Molybdenum Alloy
Rotor hardness	HRC60 surface hard chrome

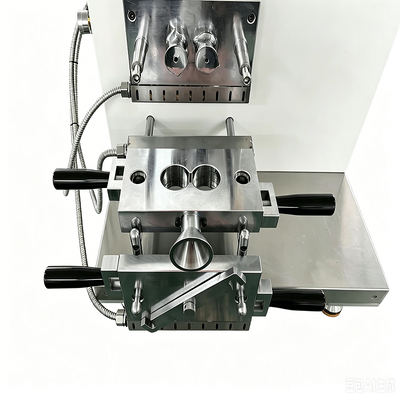

Mixing room	SKD chrome-molybdenum alloy material, inner surface hardness HRC60 mirror hard chrome
Upper pressure weight	Pneumatic
Main motor	2.2KW
Volume	5505501100MM
Power supply	380V,3 phase,or 220V single phase
Weight	Around 150kg
